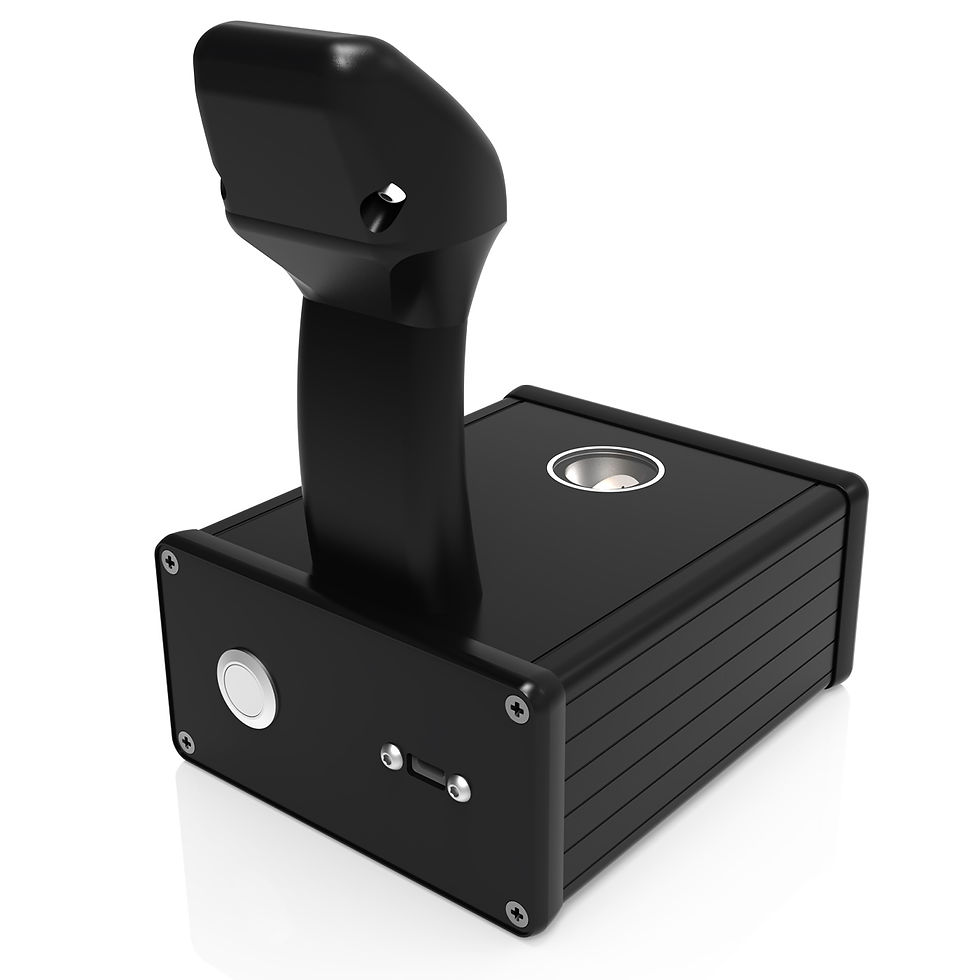

PSMK2
plastic scanner
Plastic scanner to instantly identify plastic types from items and waste.
The plasticpreneur plastic scanner is used to enable rapid sorting, identification, waste audits and educational experiences.
List price
3,590 € (excl. VAT) 230V or 110V
EXPLORE
experience and showcase the recycling process hands-on
CREATE
fast and cost effective way to create prototypes
MANUFACTURE
small batch to series production of tens of thousands of units
PSMK2
machine
features
Lightweight and portable
Internal battery for up to 6 hours of continuous measurements
App, cloud storage and open-source communication library included
EU-made, high quality components
1
2
3
4
PSMK2 - plastic scanner
standout qualities
CERTIFIED
CE/UKCA-certified & third party approved
EFFICIENT
energy efficient & optimised performance
RELIABLE
industrial components & maintenance friendly
WORKFLOW
pre-assembled & ready to use within minutes
PSMK2 - plastic scanner
technical
features
25 Materials can be identified:
PET, PE, PVC, PP, PS, PC, ABS, PMMA, PA, PLA, PETG, PU, PVDF, PEEK, POM, PAI, ASA, PSU, PEI, SAN, EVA, NBR, SILICONE, RUBBER, NEOPRENE
Transparent and opaque samples supported.Currently no differentiation between HDPE and LDPE.
Additional, own, materials can be added via the app for free.
Electric: 200-240 V, 50-60 Hz
Power consumption: 5 W, supplied via the included
Micro-USB adapter with international plugs.
Internal battery: built-in 2400 mAh Li-Po rechargeable battery, for up to 6 hours of continuous measurements.
Plug Types
Type F (EU), Type G (GBR), Type B (USA, CAN, JPN)
Dimensions: 15 x 10 x 17 cm (L x W x H)
Weight: 0.7 kg
Packaging: comes in an aluminium case, packed in a cardboard box
CE/UKCA
Operating principle:
NIR reflectance spectroscopy, within a band in the 1-2 µm range. On-board AI algorithms instantly interpret the results.
Algorithms & library:
state-of-the-art machine learning / AI algorithms included, no additional setup or fees. Own libraries can be created and materials added.
Cloud-enabled for detailed insights into scanning data, for operations and traceability.
Free iOS / Android app included
Identification speed: 0.5 s
Operating temperature: 10-40 C°
Operating max. Altitude: 2000 m
Connectivity:
Wi-Fi (2.4 GHz) for updates & connection to the cloud, Bluetooth 4.0 for connecting to the app.
App & cloud are included, as well as 1 GB of data storage and open-source communication library. Each PSMK2 can be registered to one account/e-mail.
The NIR scanner can not identify black plastics. Some very thin (< 10 µm) films can also cause issues although most films can be easily identified.
Wet and contaminated material needs to be cleaned and dried before scanning.
Customs tariff number: HS9027304040
PSMK2 - plastic scanner
distinctive features
nir sensor
to detect the plastic type
digital display
for simple operation and understanding
plug & play
ready to use with plug adapters
the workflow
1
Only a few steps are required to unpack and set up the scanner. The identification process can start immediately after turning on the scanner. A built-in battery allows continuous measurements for up to 6 hours without recharging.
2
NIR analysis is very quick and typically no sample preparation is needed. However, the accuracy of this technique is lower than a full laboratory analysis of your sample.
getting started
the scanning process
The plastic object is placed on the scanner.
The NIR sensor detects the plastic type and shows the result on the display.
Additionally the app with an open-source communication library can be used.
NIR analysis is very quick and typically no sample preparation is needed. However, the accuracy of this technique is lower than a full laboratory analysis of your sample.
We ship worldwide.
The machine comes in tailor made packaging via DHL Express parcel shipping, or if ordered in a set together with other machines, via freight-forwarding on a pallet.
